| Tempat asal | Cina |
| Nama merek | XCMG |
| Sertifikasi | ISO9001 |
| Nomor model | NXG5480D3T |

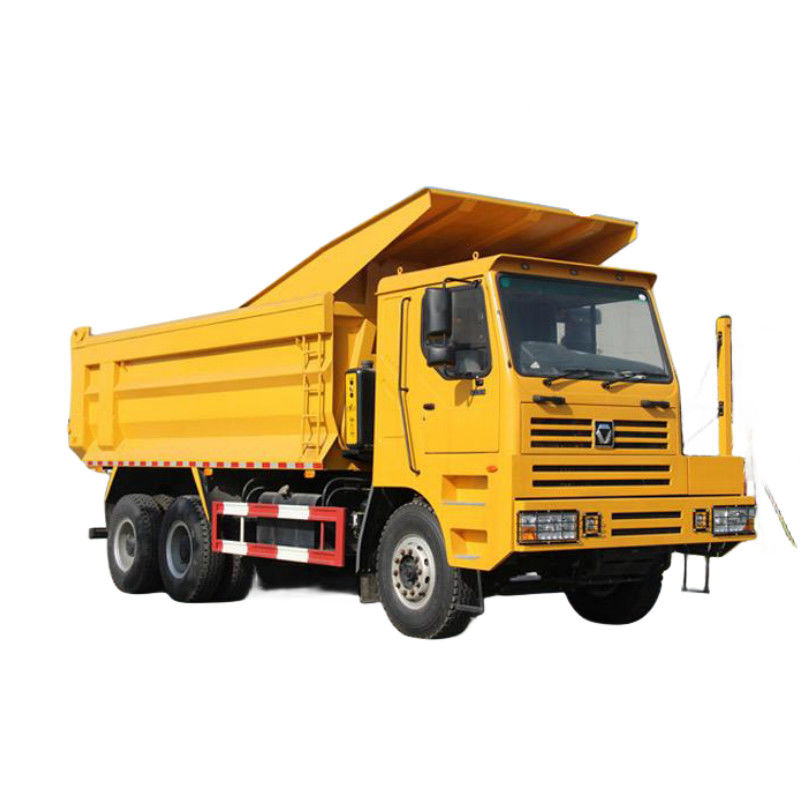

XCMG 6*4 Mining Dump Truck 50 Ton NXG5480D3T Heavy Dump Truck
Parameter Produk
| Model kendaraan | NXG5480D3T | |
| Parameter massa | GVW | 17000kg |
| Beban poros keran | 5667kg | |
| 11333kg | ||
| GCW | 47000kg | |
| beban sumbu maksimum | 11000kg | |
| 36000kg | ||
| Kinerja | Formulir drive | 6×4 |
| Max. kecepatan | 59km/jam | |
| Min. diameter putar | 9.4m | |
| Kemampuan kelas | 42% | |
| Tangki bahan bakar | 300L | |
| Dimensi | Dimensi keseluruhan | 8755x2600x3650mm |
| Jarak roda | 4000+1400 | |
| Jalur roda | 2025mm | |
| 1868mm | ||
| Min.Pembayaran | 258mm | |
| Sudut pendekatan | 23° | |
| Sudut keberangkatan | 36° | |
| Lemparan depan | 1460mm | |
| Lemparan belakang | 1895mm | |
| Ukuran kargo | 5800 × 2400 × 1500 | |
| Taksi | Model | 2.5m kanan dislokasi kabin |
| Penumpang | 1 | |
| Mesin | Model | WP10.380E32 |
| Penghapusan | 9.726L | |
| Kekuatan output | 280kW/r/min | |
| Max. torsi kecepatan | 1460N·m/r/menit | |
| Kopling | Model | Φ430 |
| Keterikatan pegas diafragma jenis tarik | ||
| Operasi | Manual hidraulik | |
| Transmisi | Model | 7JSD180A+Retarder |
| PTO | QH50 | |
| Operasi | Poros fleksibel | |
| Rasio Forward | 9.14/6.70/4.85/3.60/2.65/1.61/1 | |
| Rasio terbalik | 8.51 | |
| Poros penggerak | Model | 16T HANDE |
| Rasio pengurangan utama | 8.88 | |
| Jenis rem | Drum | |
| Kunci diferensial | Kunci diferensial antar poros | |
| Poros depan | Model | 9.5T TANGAN |
| Jenis rem | Drum | |
| Roda | Jembatan | 8.5V-20 |
| Ban | 12.00R20 | |
| Bingkai | Model | Balok lurus alur |
| HxW-t | 320mm | |
| Lebar bingkai | 865mm | |
| Penangguhan | Bagian depan | Mata air daun |
| 10 |
